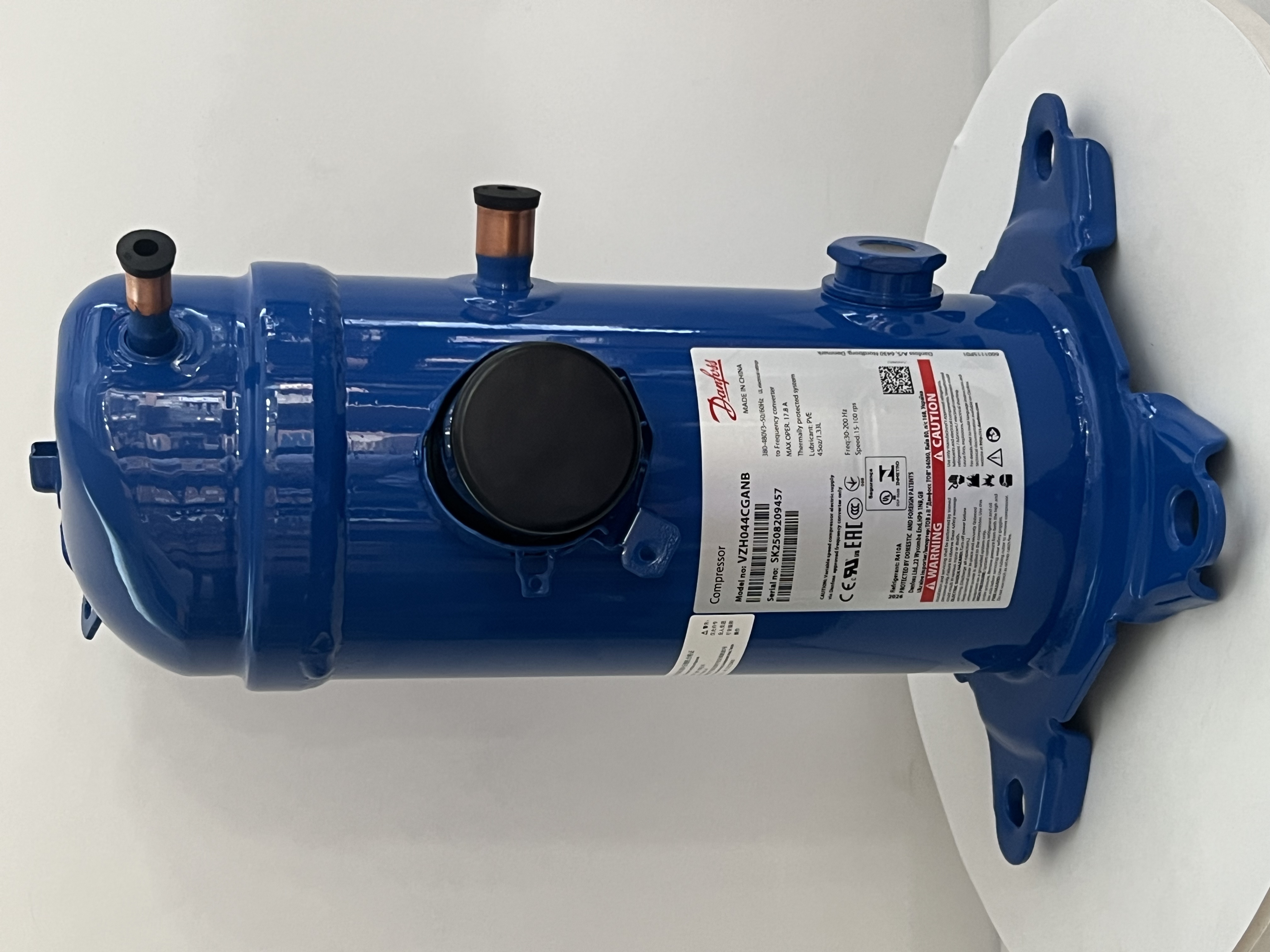

Many HVAC engineers tend to focus on large parallel inverter scroll compressors when selecting models, and easily overlook the VZH044CGANB, a benchmark model on the small VZH platform. It is not a generic inverter compressor. It is a standardized single-unit solution of Danfoss Gen3 VZH inverter scroll platform equipped with IDV intermediate discharge valve, designed for R410A commercial air conditioning. It is suitable for rooftop units, air-cooled modular chillers, precision constant-temperature units and other medium & small commercial projects with fluctuating heat loads.
1. Basic Model Information
- Model: VZH044CGANB
- Compressor type: Hermetic inverter scroll compressor
- Original approved refrigerant: R410A; also validated for low-GWP alternatives R454B and R452B
- Power supply: 380–480 V three-phase, 50/60 Hz
- Displacement: 44.5 cm³, rated output power: 10 kW
- Factory oil charge: 1.3 L PVE oil
- Recommended drive: Danfoss CDS803 inverter; compliant third-party drives are also acceptable
2. Core Advantage: IDV Intermediate Discharge Valve to Solve Part-Load Over-Compression
Conventional scroll compressors have a fixed built-in pressure ratio. At part-load operation with low condensing pressure, over-compression occurs: refrigerant is compressed to a discharge pressure higher than the system requirement, which creates extra power consumption and lowers seasonal efficiency.
VZH044CGANB integrates an IDV intermediate discharge valve to release excess pressure during compression:
- One single compressor covers a wider pressure ratio range, eliminating the need for separate high-pressure and low-pressure variants
- Around 5% higher part-load efficiency compared with older VZH scrolls without IDV
- Rooftop units and air-cooled modules operate at part-load for most of the time, so the SEER benefit can be continuously realized
Motor: IPM interior permanent magnet motor
- Speed range: 15–100 RPS
- Capacity modulation range: 15%~100%, turndown ratio 7:1
- Benefits: Excellent load following, less frequent start-stop, lower inrush current, tighter temperature control and quieter operation
- Typical applications: Precision air conditioning for data rooms, small commercial rooftop units, air-cooled modular chillers, laboratory constant-temperature cooling units
3. Mandatory Selection & Commissioning Limits
- Refrigerant charge: Maximum single-unit charge 3.6 kg. If exceeding this limit, an accumulator or pump-down protection is required to prevent liquid slugging. The piping system is designed for HFC refrigerants; tools and fittings for CFC/HCFC must not be mixed.
- Pressure limits: Compressor design pressure PS: low side 33.3 bar(g), high side 41.1 bar(g); compressor test pressure TS low side 36.7 bar(g); conservative site test pressure recommendation ≤30 bar(g). R410A operates at relatively high pressure, so valves, heat exchangers and copper tubes must be high-pressure rated, and old fixed-speed scroll components cannot be reused.
- Suction superheat: Recommended optimum suction superheat ~6 K, maximum allowable suction superheat 30 K. Commissioning sequence: stabilize superheat first, then adjust frequency, to avoid liquid return at low speed.
- Wiring & rotation: Terminals T1/T2/T3 of compressor connect to U/V/W of inverter correspondingly. Motor cable must be shielded and earthed at both ends to meet EMC requirements. Correct rotation is counter-clockwise viewed from top; wrong rotation will damage scroll wraps.
4. Market Position: Filling the Selection Gap for Medium & Small Commercial Units
For the 10–18 kW power segment, traditional OEM schemes have obvious drawbacks:
- Fixed-speed scroll plus electric heating compensation: High energy consumption and poor temperature control
- Multiple small compressors in parallel: Complex oil balance and control logic, higher overall unit cost
Value of VZH044CGANB single inverter solution:
- Pre-validated package of compressor + Danfoss original drive, which greatly reduces OEM matching test workload and shortens time-to-market
- Modbus communication supported for unit controller and BMS integration; rotating speed, current and fault codes can be monitored
- Compact structure, lower inventory and supply chain pressure compared with larger VZH models
5. Summary for Model Selection
Nowadays commercial HVAC energy efficiency standards keep tightening, while many suppliers simply treat “inverter” as a marketing slogan. The core value of VZH044CGANB is integrating IDV valve, IPM inverter and wide-envelope operation into one mature medium-small compressor. It is not universal for all cases, but provides a fully tested compressor solution with clear operating boundaries and reliable failure rate when working conditions match.
